Maximize Logistics and Warehouse
Efficiency with the Best Data Capture Device

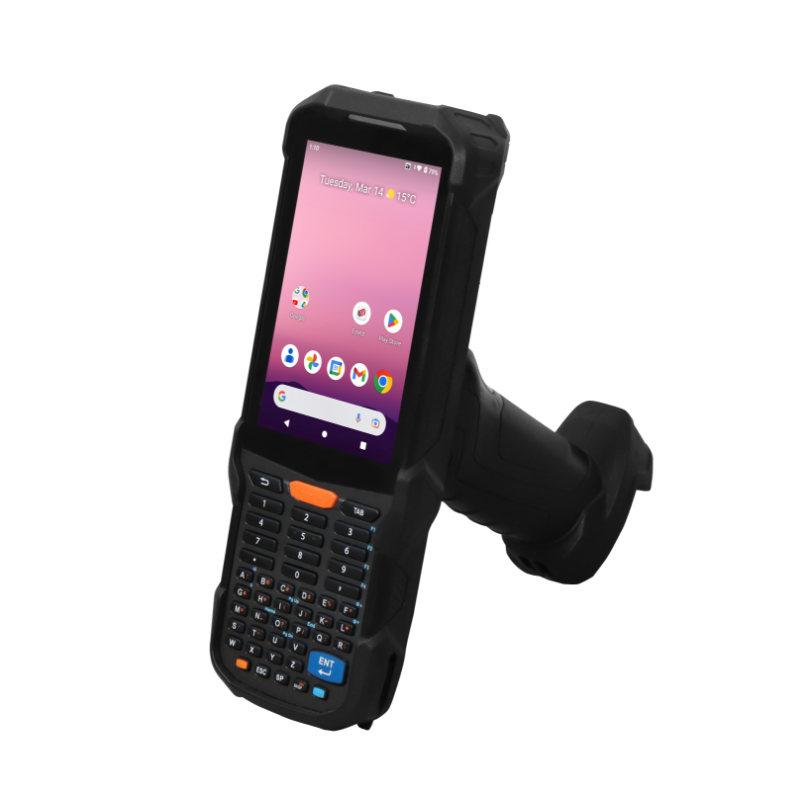

PM560

Equipped with a 2.0 GHz Qualcomm processor and 4 GB RAM / 64 GB Flash, the PM560 optimizes logistics and warehouse processes.
With Android 11 OS, it provides a seamless user experience, and Wi-Fi 6 support ensures fast, secure, and uninterrupted data flow.

PM560
PM560
PM560
1
/
1
PM560
PM560

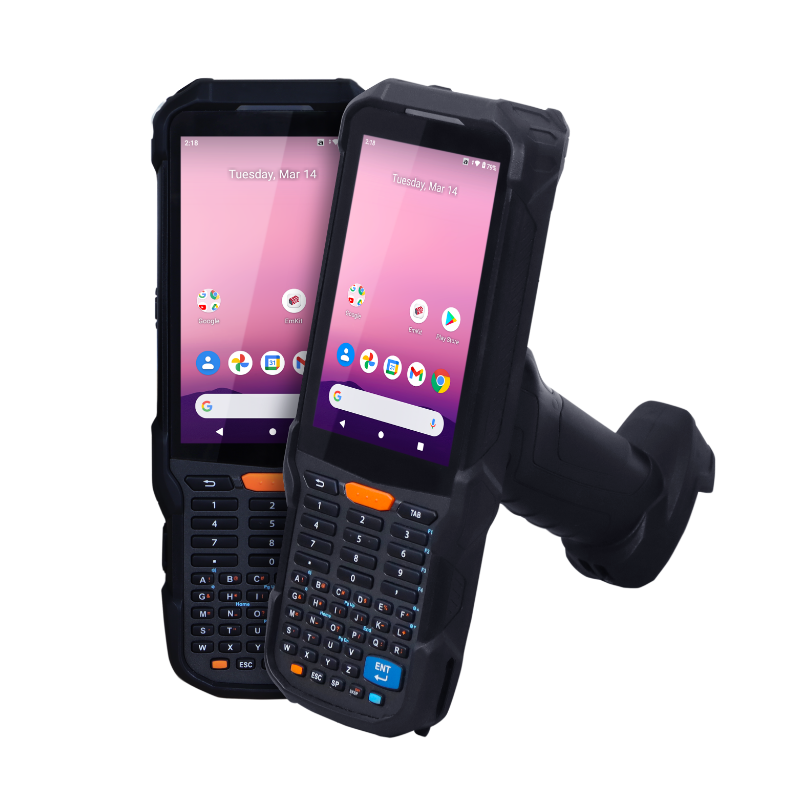

Combination of Proven Design and
Next-Generation Technology

The PM560 inherits the proven exterior design of its predecessor, the PM550, while significantly upgrading internal hardware. With a 2.0 GHz Qualcomm processor and 4 GB / 64 GB memory, it smoothly runs high-performance retail and logistics solutions. Additionally, Wi-Fi 6 and a 2x2 MU-MIMO antenna enable fast and secure network connectivity.

PM560
PM560

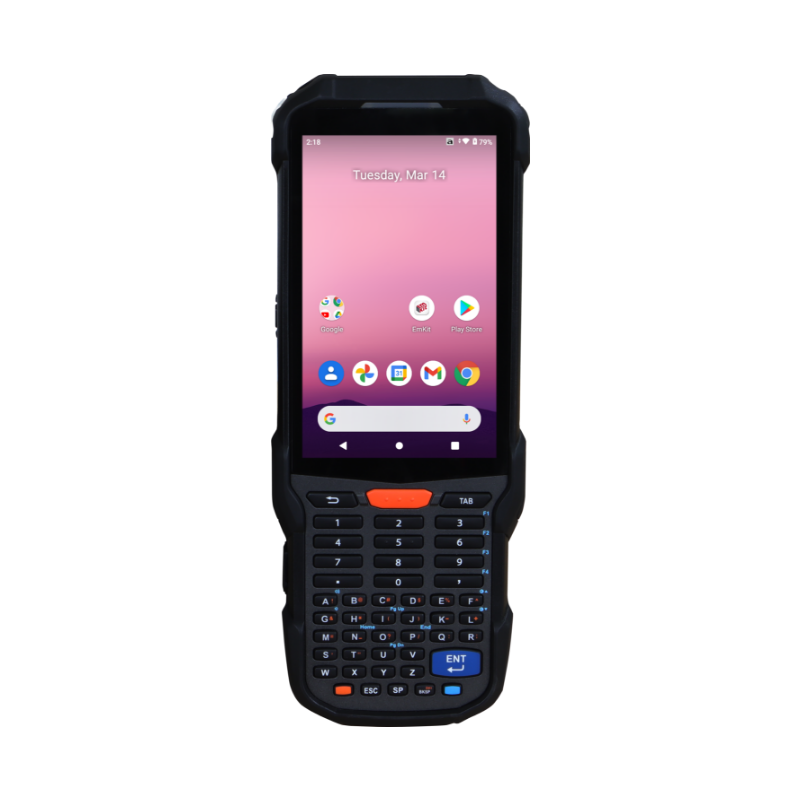

Three High-Performance Scanner Options for Optimal Choice

The PM560 offers three high-performance scanner options (SE4750, N6703, N6803 FR), allowing businesses to choose the model that best suits their needs.

PM560

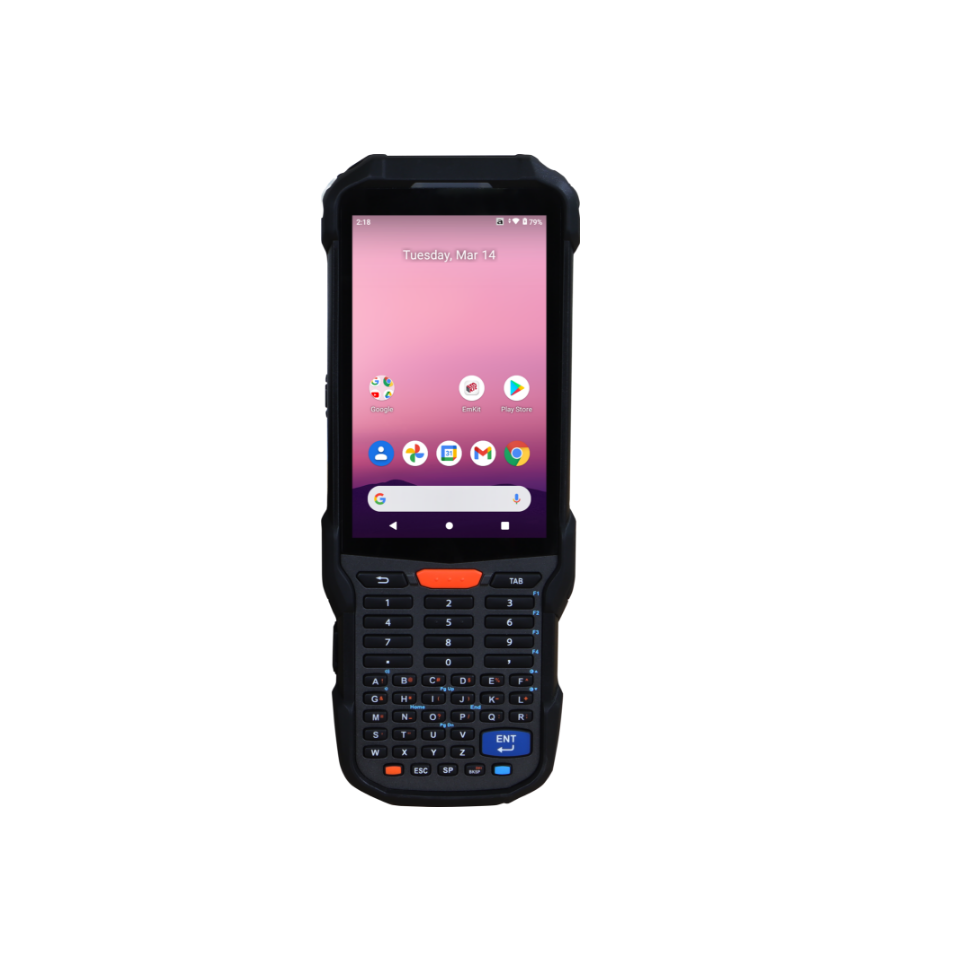

Rugged Design for Use
in Extreme Environments
  • Drop
    Drop
    1.8 m / 1.5 m

    The PM560 has passed drop tests from 1.8 m (6 ft.) at room temperature and 1.5 m (5 ft.) within its operating temperature range onto a concrete floor.

  • Rain/dust proof
    Rain/dust proof
    IP65

    IP65 dustproof and waterproof rating ensures stable operation even in harsh work environments. Corning Gorilla Glass protects the touchscreen for enhanced durability.

PM560
PM560

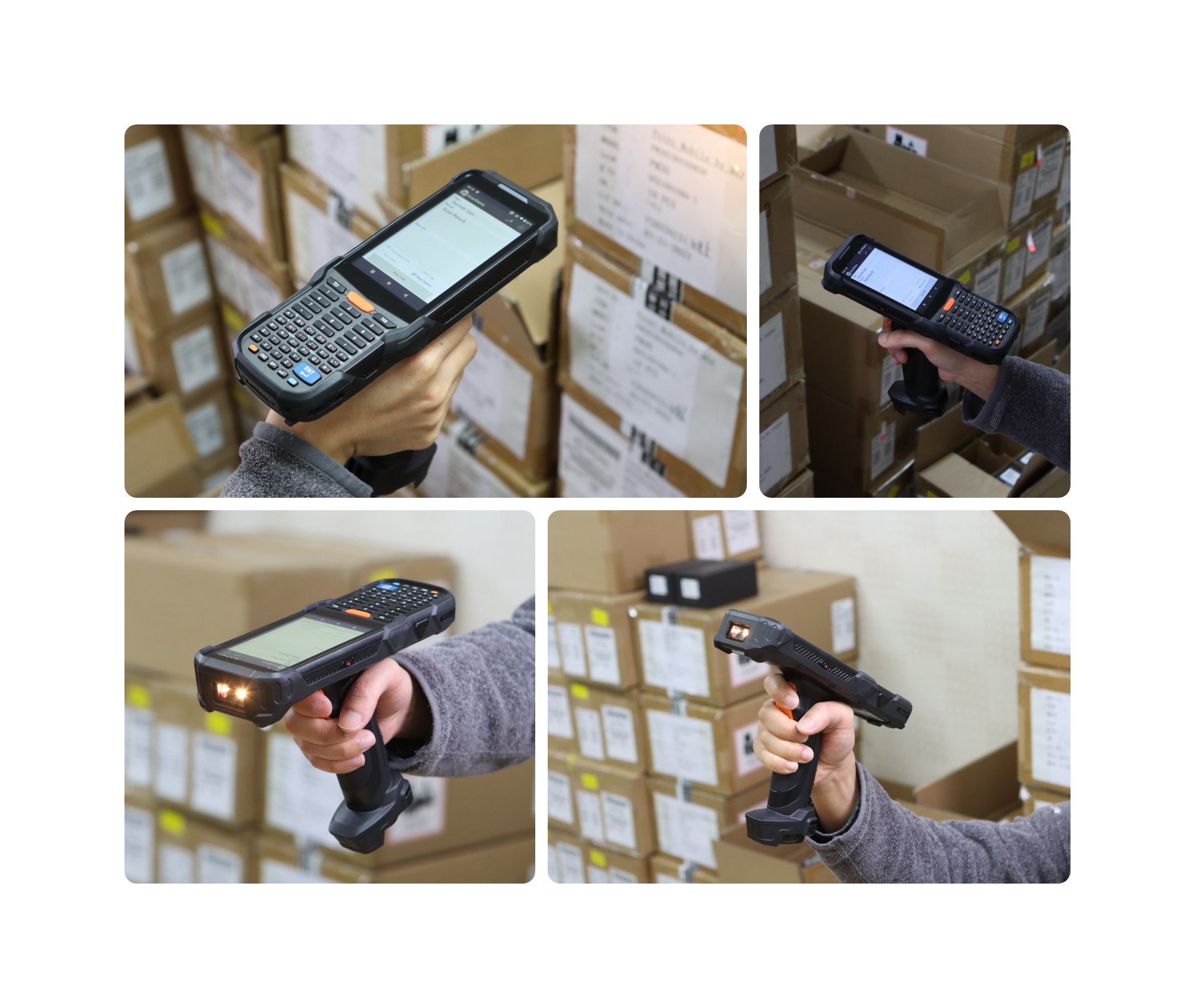

Premium Features
for Smooth Warehouse Operations

With BLE Beacon, it can transmit location signals for up to six months even without a battery or power. The Enterprise Hot-Swap feature allows battery replacement without interrupting workflows. The physical keypad, available in Alphanumeric or Numeric formats, ensures precise data input.

PM560
Specifications
Dimensions
(L x W x D) 		204.5 x 79.0 x 175.0 mm
8.1 x 3.1 x 6.9 in.
Weight 602 g / 21.2 oz.
Power Main battery: 6,300 mAh
Back-up battery: 400 mAh, Enterprise Hot-Swap
Display 4.3” IPS panel (480 x 800 pixels), WVGA
LED backlight
Daylight readable (450 nits)
Multi-touch capacitive
Corning Gorilla Glass
OS Android 11 (upgradeable to Android 14)
Processor Qualcomm® Octa-core @2.0GHz
Memory and Storage 4 GB / 64 GB
Communication WLAN: 802.11 a/b/g/n/ac/ax/d/h/i/k/r/v, 2x2 MU-MIMO
WPAN: Bluetooth Class I, Ver 5.0, BLE support,
BLE Beacon (transmits signals for up to 6 months, power-off and without main battery)
Data Capture Three scan engine options: SE4750, N6703, N6803 FR all supporting 1D/2D barcode symbologies
Drop 1.8 m (6 ft.) multiple drops to concrete at room temperature (23 °C / 73° F)
1.5m (5 ft.) multiple drops to concrete across the operating temperature range, MIL-STD-810H
Rain/dust Proof IP65
