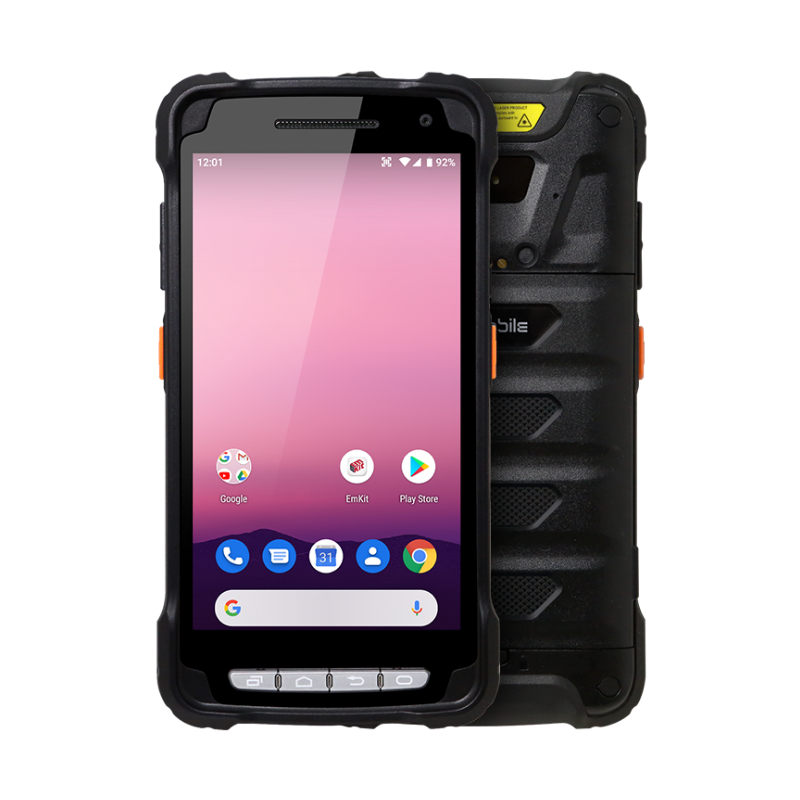

The Ultimate Enterprise
Mobile Computer Designed
for Maximum User Convenience

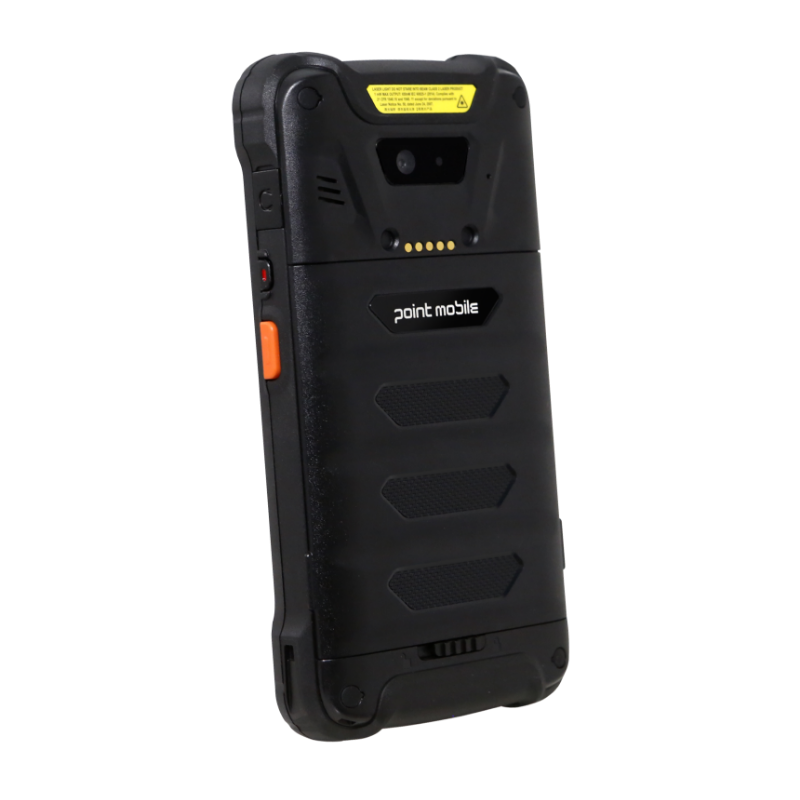

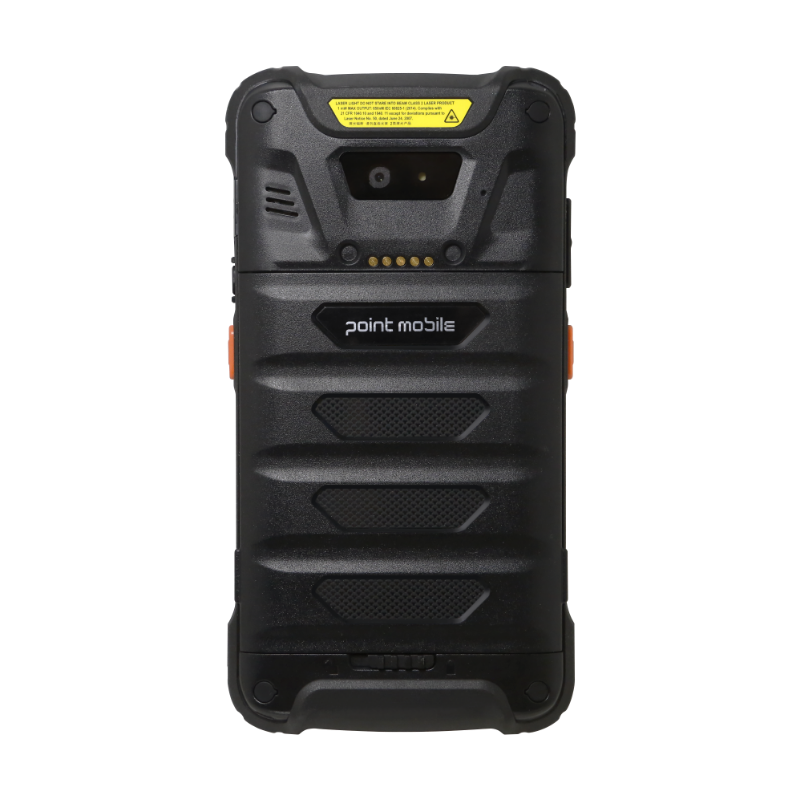

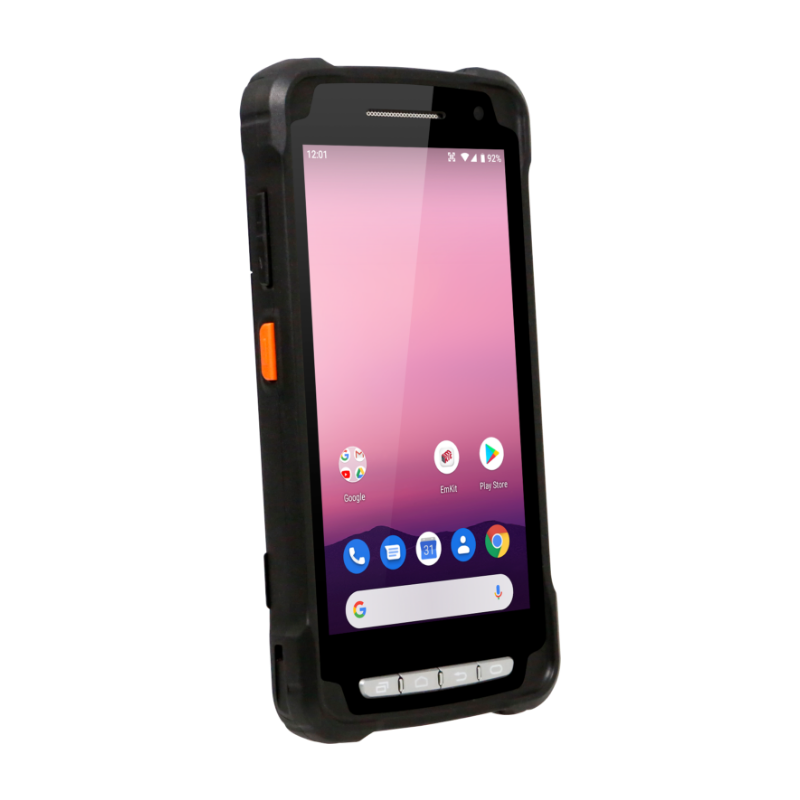

PM90

Powered by a high-performance Qualcomm octa-core 2.2 GHz processor, the PM90 delivers exceptional performance.
Four essential physical keys on the front panel significantly enhance user convenience. Built-in Magnetic Stripe Reader and
IC Reader provide expanded usability, along with fast and accurate scanning capabilities.

PM90
PM90
PM90
PM90
PM90
PM90
PM90
PM90
PM90
PM90
1
/
1

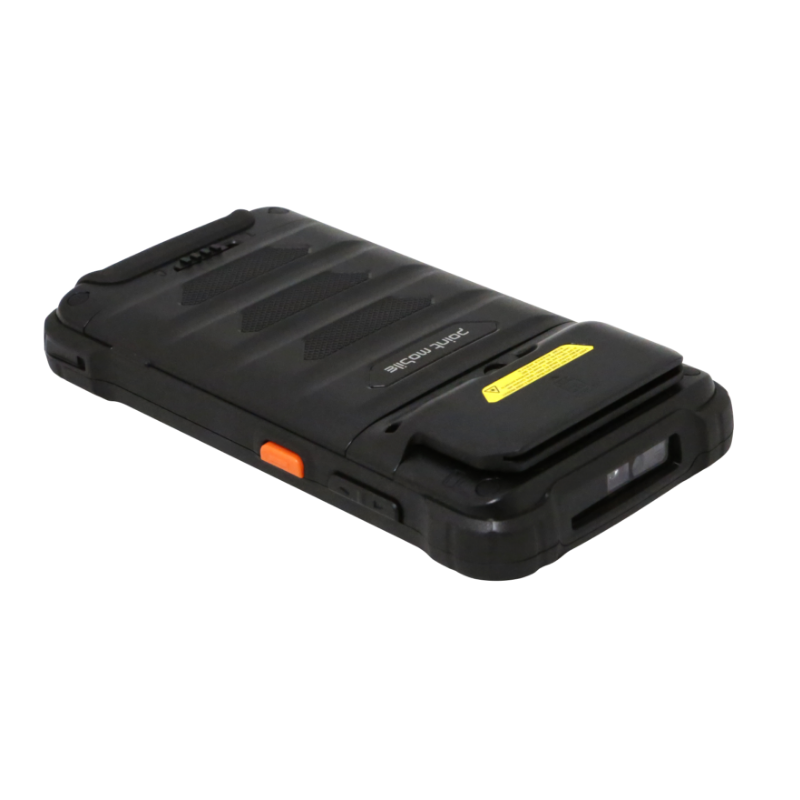

Powerful Scan Engine for Exceptional 1D & 2D Scanning Performance

Built on the N6703 scan engine, the device precisely scans all standard 1D and 2D barcode symbologies. Its advanced scanning capability ensures accurate recognition even for damaged or faded barcodes.

PM90
Enhanced Expandability with MSR Reader

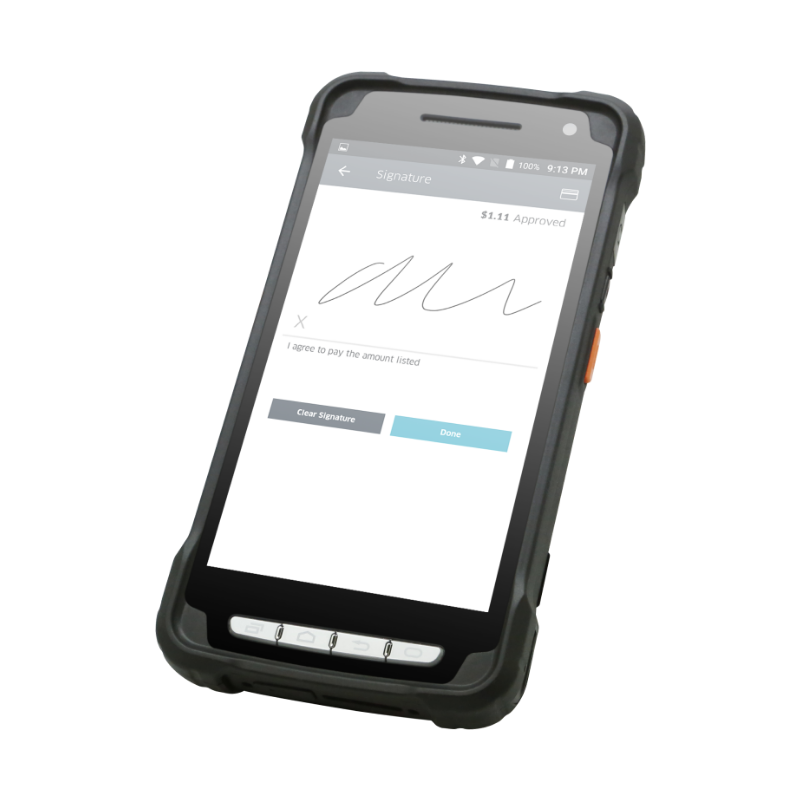

Features a built-in Magnetic Stripe Reader and IC Reader, enabling card payments, membership recognition, and other user card functionalities.*

PM90
PM90
  • Optimized Ergonomic
    Design for User
    Convenience

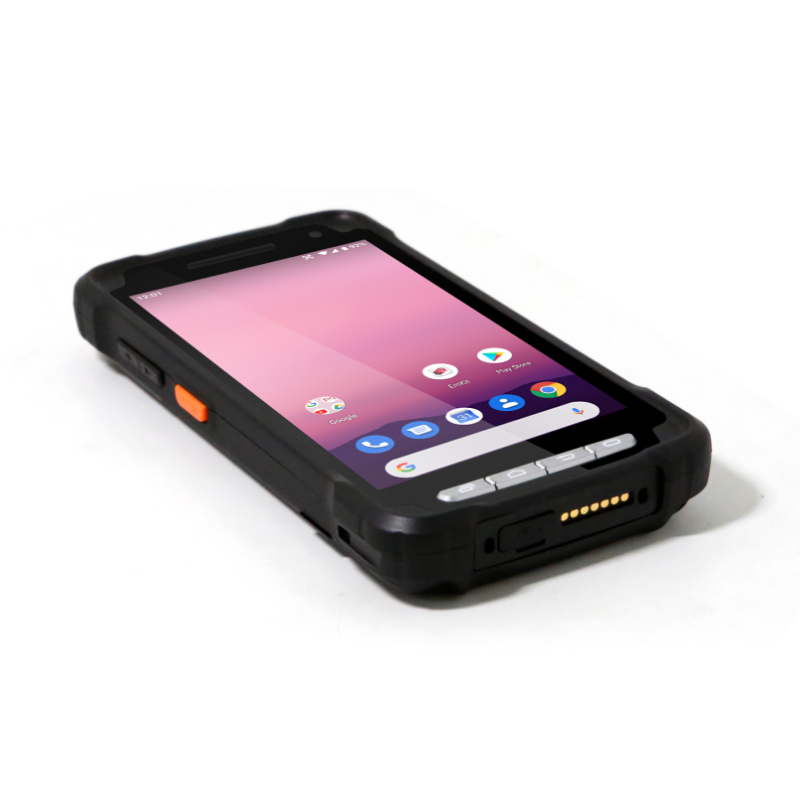

  • Four essential
    physical keys

    Four essential physical keys on the front panel enable
    faster data processing and increased operational efficiency.
    EmKit™ allows users to define functions, customizing physical
    keys to meet the specific needs of each enterprise.

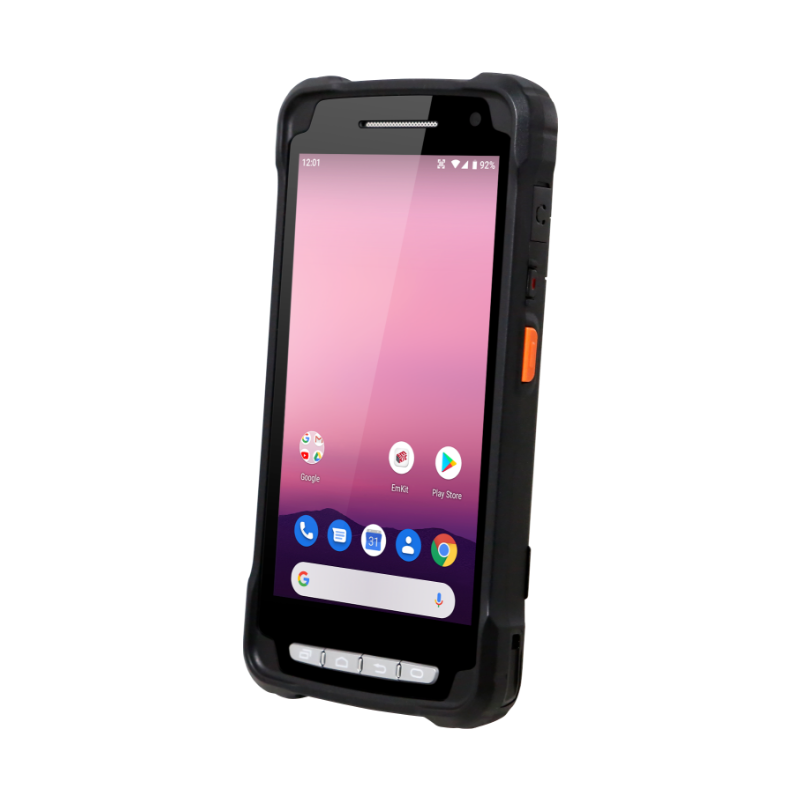

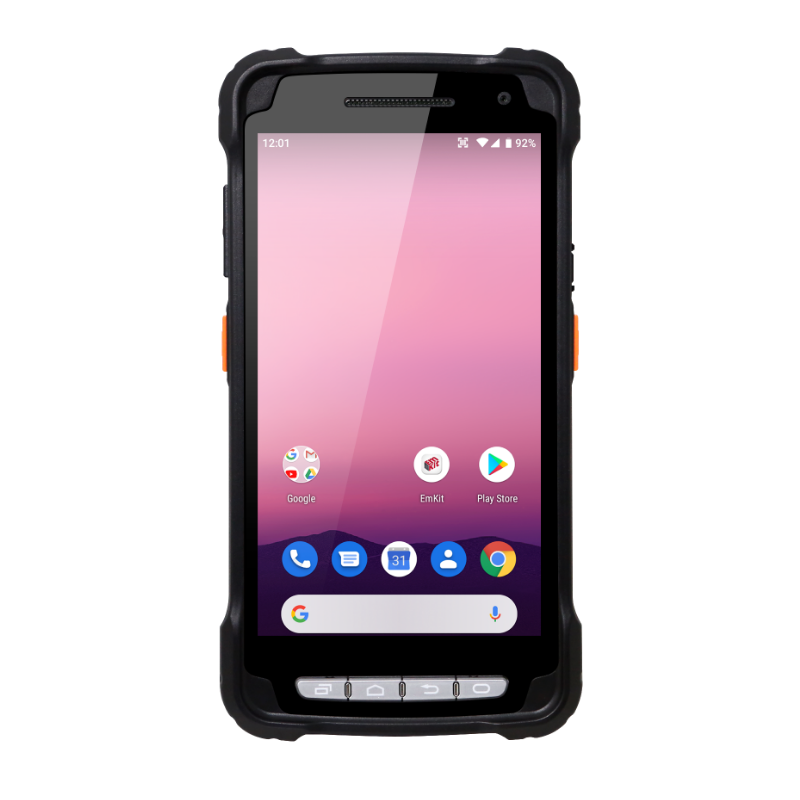

  • 5-inch large display

    Despite the front-facing physical keys,
    the 5-inch large display provides easy access to key information.
    The screen is also protected by Gorilla Glass for enhanced durability.

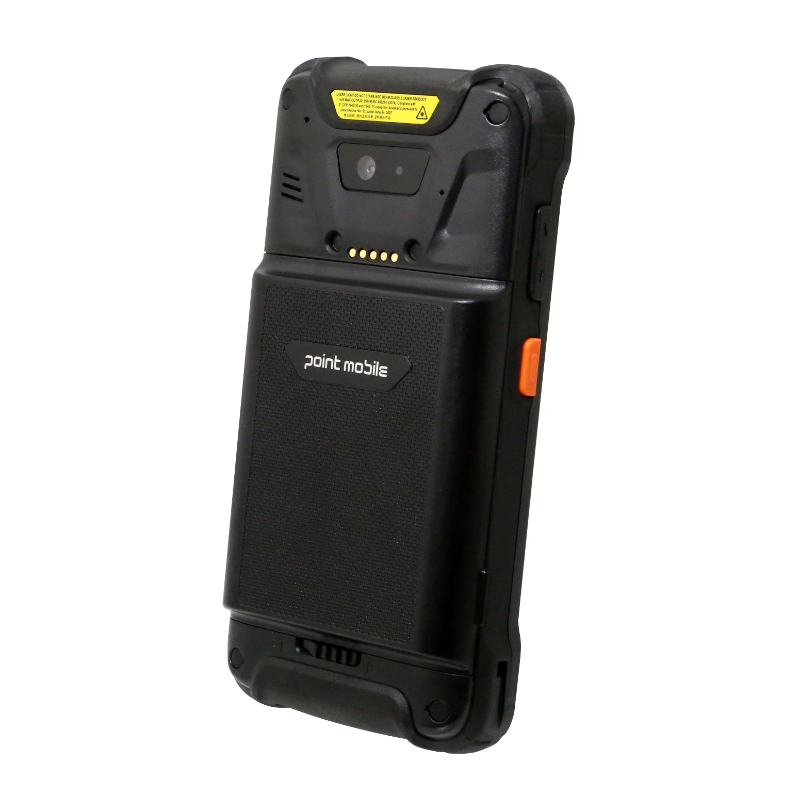

  • A carefully designed side grip

    A carefully designed side grip ensures stable
    handling even in demanding environments.

Faster and More Accurate with a Powerful Processor

Equipped with a Qualcomm Snapdragon octa-core 2.2 GHz processor, the PM90 comes standard with 4 GB RAM and 64 GB ROM, with additional storage expansion available via a built-in microSD card slot.

PM90
Dual SAM Slot for Enhanced Security and Flexibility

The Dual SAM Slot enhances security and provides greater flexibility for authentication processes and payment systems, significantly expanding its usability.

PM90
Built to Withstand
Any Enterprise Environment
  • Drop
    Drop
    1.5 m

    Tested for multiple drops
    from 1.5 m (5 ft.)

  • Rain/dust proof
    Rain/dust proof
    IP67

    Fully dustproof and tested
    for water-resistant

  • Tumble
    Tumble
    1,000 cycles

    Tested to withstand 1,000 tumbles
    (2,000 hits) at 1 m (3.3 ft.).

Specifications
Dimensions
(L x W x D) 		With Standard Battery:
156.4 x 82.0 x 21.5 mm

With Extended Battery:
156.4 x 82.0 x 23.9 mm
Weight 272g (9.59oz), 322g (11.36oz) with extended battery
Power 2,900mAh (Standard), 5,800mAh (Extended)
Display 5.0 in, 720 x 1280 pixel (HD), IPS panel
OS Android 9 or 11 (upgradeable to Android 14)
Processor Qualcomm® Snapdragon, Octa-core, 2.2GHz
Memory and Storage 4GB/64GB
3GB/32GB (Optional)
Communication Satellite: A-GPS, GLONASS, Galileo, Beidou
WWAN: LTE FDD,TDD, WCDMA, EDGE/GPRS/GSM, 2xCA support
WLAN: 802.11 a/b/g/n/ac/d/h/i/k/r/v,
WPAN: Bluetooth Class I, Ver 5.0, BLE support
Data Capture Camera: 13MP with LED flash, 5.0MP (front),
NFC,
1D/2D Imager: Slim Imager Engine (N6703), 1D/2D barcode symbologies
Sealing IP67
Drop 1.5m (5ft) multiple drops to concrete across operating temperature range, based on MIL-STD 810G
